- Place of Origin:CN;GUA
- Brand Name:QIWEI
- Type:SAW BLADE
- Blade Material:Tungsten Carbide Steel
- Size:300X32X3.5x70T
- Model Number:28023
- Finishing:Polished

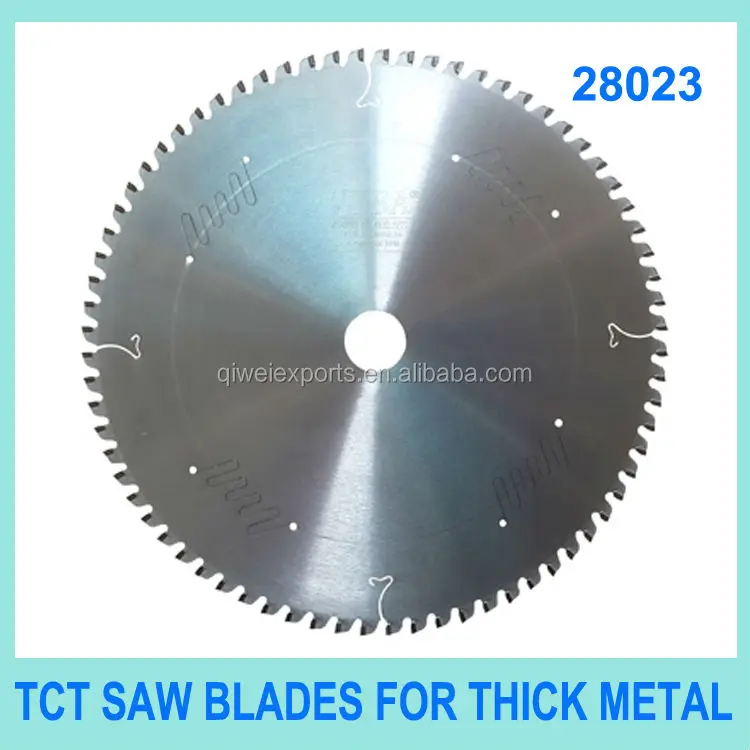

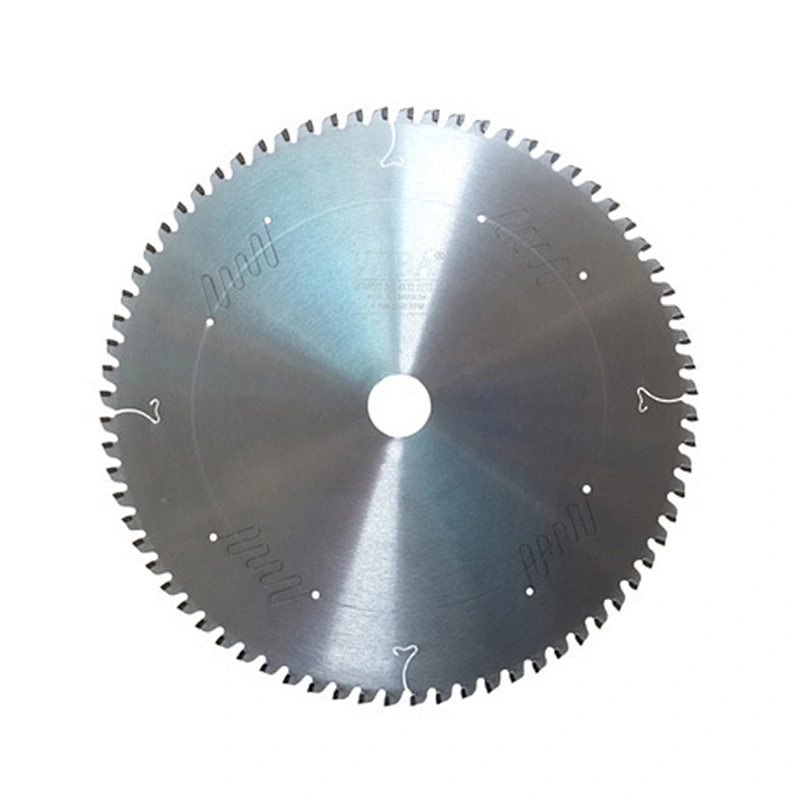

300*72T TCG TCT CIRCULAR SAW BLADE FOR CUTTING ALUMINIUM
75Cr1/65Mn steel body
Various sizes for option
Cut 10mm metal
TCT SAW BLADES FOR CUTTING NON-FERROUS METAL PROFILES,PLASTIC AND ALUMINUM BARS
Saw blades for cutting aluminum and other non-ferrous with wall thickness up to 10mm,also can cut aluminum bars.
ATTENTION:THE WORK PIECE MUST BE PROPERLY CLAMPED DURING CUTTING.
Features:
1.Material:steel body in 75Cr1 imported from Japan,tip CERATIZIT/K01/Taiwanese/Top quality made-in-China.
A.Steel body,laser-cutting,heat treatment to add strength.
B.Hand hammered to make run-out to minimum.
C.Dynamic balancing and straightness:To diminish the saw blade"run-out"and vibration enhancing the accuracy
2.Automatic welding and grinding machine.
3.Sandwich soldering flake.
4.Saw blade can be re-sharpen repeatedly.
5.Customized size is also available.Any size can be produced as customer required.
Supply details:
1.MOQ:10 PCS.
2.Supply:30,000 pcs/month.
3.Delivery time: 15-20 days.
COD. | D(mm) | Z | B/b(mm) | H(mm) | DEVICE |
AL250.3260 | 250 | 60 | 3.5/3.0 | 32 | TCG |
AL300.3272 | 300 | 72 | 3.5/3.0 | 32 | TCG |
AL305.2580 | 305 | 80 | 3.2/2.3 | 25.4/30/32 | TCG |
AL305.3280 | 305 | 80 | 3.2/2.3 | 25.4/30 | TCG |
AL355.2560 | 355 | 60 | 3.5/2.5 | 25.4/30 | TCG |
AL355.2580 | 355 | 80 | 3.5/2.5 | 25.4/30 | TCG |
AL350.3284 | 350 | 84 | 3.5/3.0 | 32 | TCG |
AL400.3296 | 400 | 96 | 3.5/3.0 | 32 | TCG |
AL405.2540 | 405 | 40 | 3.8/2.8 | 25.4/30 | TCG |
AL405.2560 | 405 | 60 | 3.8/2.8 | 25.4/30 | TCG |
AL405.2580 | 405 | 80 | 3.8/2.8 | 25.4/30 | TCG |
AL450.3218 | 450 | 108 | 4.0/3.2 | 32 | TCG |
AL455.2560 | 455 | 60 | 4.4/3.4 | 25.4/30 | TCG |
AL455.2580 | 455 | 80 | 4.4/3.4 | 25.4/30 | TCG |
AL500.2560 | 500 | 60 | 5.0/3.8 | 25.4/30/38 | TCG |
AL500.2580 | 500 | 80 | 5.0/3.8 | 25.4/30/38 | TCG |
AL600.3040 | 600 | 40 | 5.0/4.0 | 30/32/38/55 | TCG |
AL600.3060 | 600 | 60 | 5.0/4.0 | 30/32/38/55 | TCG |
AL600.3072 | 600 | 72 | 5.0/4.0 | 30/32/38/55 | TCG |
AL650.4064 | 650 | 64 | 5.7/4.2 | 30/40/55 | TCG |
AL650.4072 | 650 | 72 | 5.7/4.2 | 30/40/55 | TCG |
AL700.4050 | 700 | 50 | 5.7/4.5 | 30/40/55 | TCG |
AL700.4060 | 700 | 60 | 5.7/4.5 | 30/40/55 | TCG |
AL700.4072 | 700 | 72 | 5.7/4.5 | 30/40/55 | TCG |
AL750.4060 | 750 | 60 | 6.2/5.0 | 30/40/55 | TCG |
AL750.4080 | 750 | 80 | 6.2/5.0 | 30/40/55 | TCG |
AL800.4072 | 800 | 72 | 6.2/5.0 | 40/50/55 | TCG |
Packing details:
1. The inner package: 1 PCS per plastic bag
2. The outside package: 1PCS per color box
3. The third package:15 pieces per carton
4. Carton size: 40X40X25 CM
5. Net weight: 1KG/pc
Shipping details:
| Shipping method | Quantity | Means of transpor | Shipping time |
| Express | Suit for small order and medium order | DHL FEDEX Postal service | 3-5days 4-6days 10days |
| Air Transportation | Suit for urgent and medium order | By plane | 3-5days |
| Sea Transportation | Suit for big order | By ship | Southeast Asia 15days South Asia 15days Middle East 15-20days Europ 25-30days |
