- Place of Origin:CN;GUA
- Brand Name:QIWEI
- Type:SAW BLADE
- Blade Material:Tungsten Carbide Steel
- Size:300X30X3.2x72T
- Model Number:28022
- Finishing:Polished

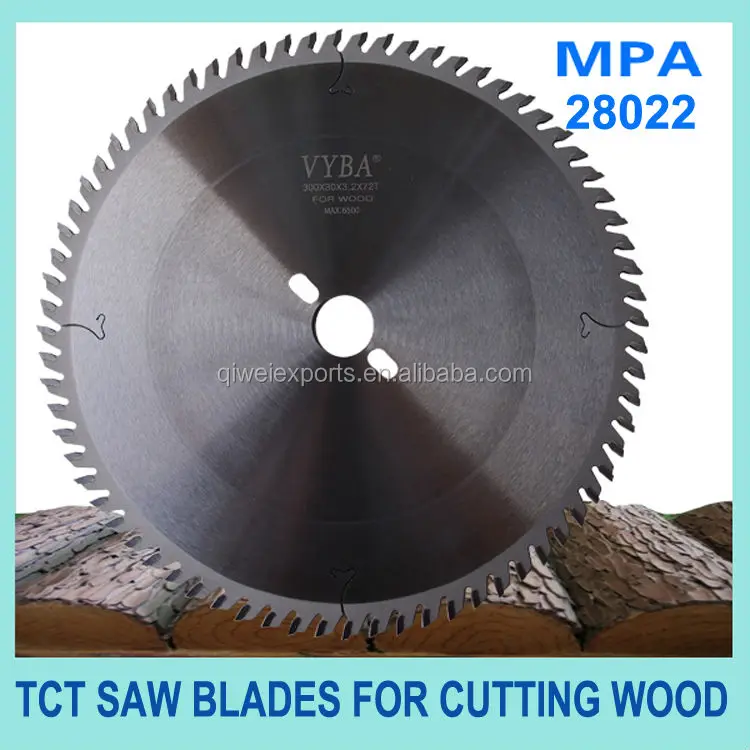

Panel sizing circular saw blade for wood
Size:300X30X3.2x72T
Various sizes for your option/OEM
Best cutting
Lowest noise
MOQ:10 PCS.
Supply:30,000 pcs/month.
Delivery time: 15-20 days.
Features:
--- With the left /right bevel saw tooth, can cut various solid wood
--- With its processing thickness at more than 100mm.
--- The material is imported one.The steel body is 75Cr1,the carbide tip is Luxemburg,K01 etc,welded with siver-brazed slice.
--- It is welded and grinded by CNC automatic machine,not by hand.
--- The vertical jump is less than ±0.02mm,flap less than ±0.01mm.The tolerance is controlled to be minimum.
Out diameter (ΦD) | Tooth width(B) mm | Tooth thickness(Φb) mm | Inner diameter(d) mm | Number of Teeth(Z) | Cutting Angle(a°) | Tooth type(C) | Use(U) |
| 180 | 3.2 | 2.2 | 25.4 | 30 | 15 | Left/right | Cut various solid wood |
| 200 | 3.2 | 2.2 | 25.4 | 36 | 15 | ||
| 230 | 3.2 | 2.2 | 25.4/30 | 40 | 15 | ||
| 250 | 3.2 | 2.2 | 30 | 40 | 15 | ||
| 300 | 3.2 | 2.2 | 30 | 48 | 15 | ||
| 350 | 3.5 | 2.5 | 30 | 54 | 15 | ||
| 400 | 3.5 | 2.5 | 30 | 60 | 15 | ||
| 450 | 4.0 | 2.8 | 30 | 72 | 15 | ||
| 500 | 4.4 | 3.0 | 30 | 80 | 15 |
Packing details:
1. The inner package: 1 PCS per plastic bag
2. The outside package: 1PCS per color box
3. The third package:15 pieces per carton
4. Carton size: 40X40X25 CM
5. Net weight: 1KG/pc
Shipping details:
| Shipping method | Quantity | Means of transpor | Shipping time |
| Express | Suit for small order and medium order | DHL FEDEX Postal service | 3-5days 4-6days 10days |
| Air Transportation | Suit for urgent and medium order | By plane | 3-5days |
| Sea Transportation | Suit for big order | By ship | Southeast Asia 15days South Asia 15days Middle East 15-20days Europ 25-30days |
We will be your long term and reliable China supplier from now on. Please contact with us and tell us the items you need,thanks.
