- Place of Origin:CN;GUA
- Brand Name:QIWEI
- Type:SAW BLADE
- Blade Material:Tungsten Carbide Steel
- Size:100x20/22x3.0-4.0/2.2x24T
- Model Number:28018
- Finishing:Polished

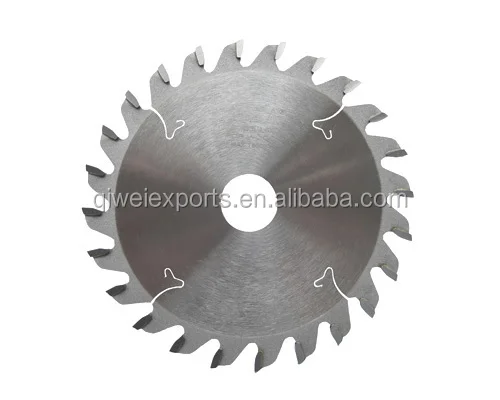

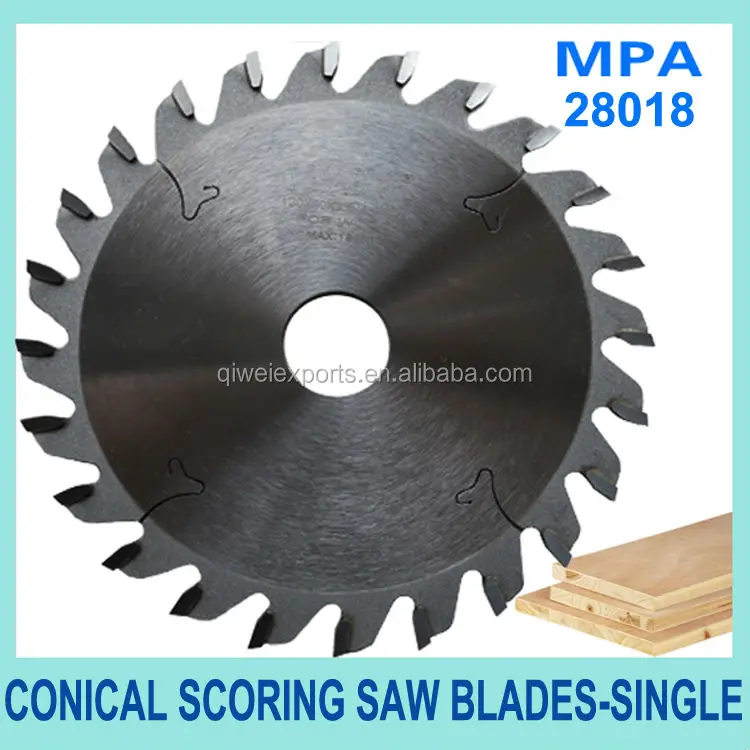

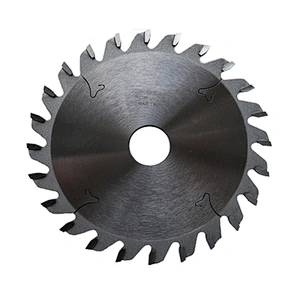

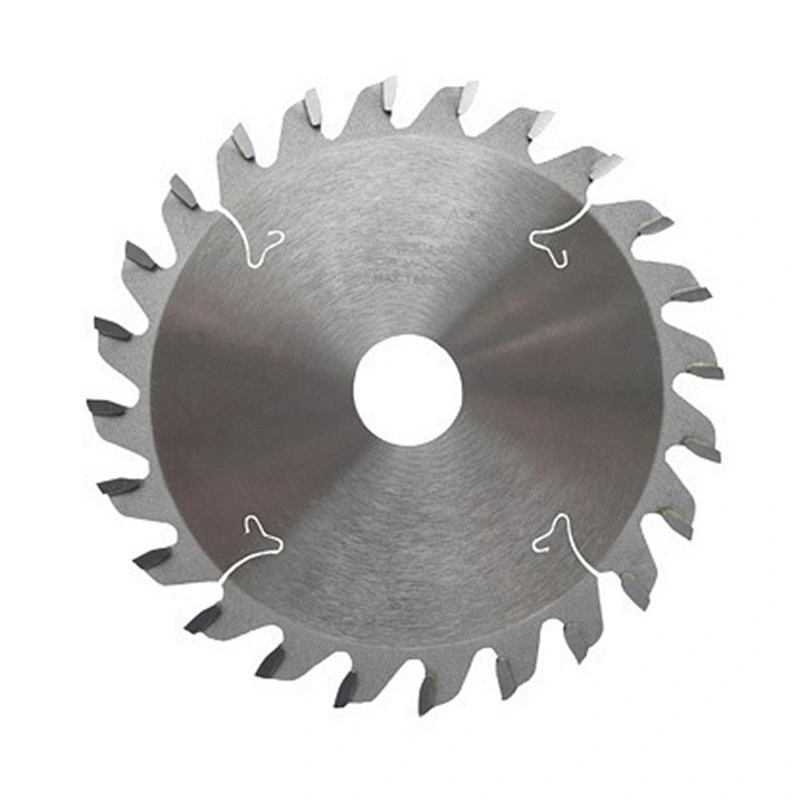

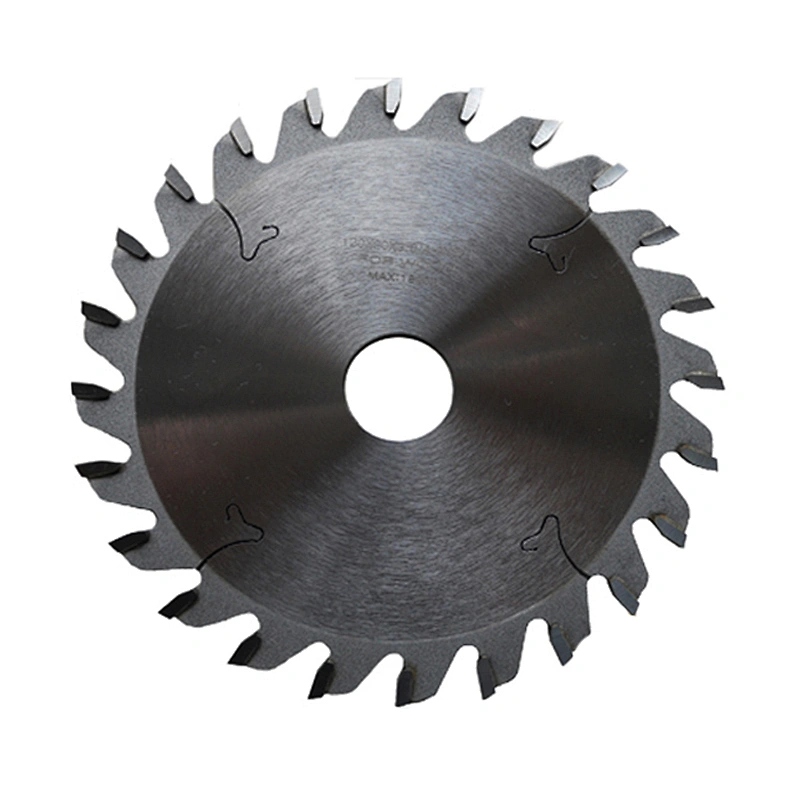

TCT CONICAL SCORING SAW BLADES
Size:100x20/22x3.0-4.0/2.2x24T
Various sizes for your option or OEM
Best cutting
Lowest noise
MOQ:10 PCS.
Supply:30,000 pcs/month.
Delivery time: 15-20 days.
It is mainly applied in pre-scoring on all types of double- veneered laminate board.To avoid veneered surface broken,adjusting height of scoring saw blade axis to be the same as panel sizing saw blade kerf.
COD. | D(mm) | B/b(mm) | H(mm) | Z | DEVICE |
SS100.304024 | 100 | 3.0-4.0/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS100.304224 | 100 | 3.0-4.2/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS120.283824 | 120 | 2.8-3.8/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS120.304024 | 120 | 3.0-4.0/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS120.304224 | 120 | 3.0-4.0/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS125.304024 | 125 | 3.0-4.2/2.2 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS125.334524 | 125 | 3.3-4.5/2.5 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS125.385024 | 125 | 3.8-5.0/2.5 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS125.435524 | 125 | 4.3-5.5/3.0 | 20/22 | 24 | TOP BEVEL CONICAL TEETH |
SS150.304236 | 150 | 3.0-4.2/2.2 | 25.4/30 | 36 | TOP BEVEL CONICAL TEETH |
SS150.334536 | 150 | 3.3-4.5/2.5 | 25.4/30 | 36 | TOP BEVEL CONICAL TEETH |
SS160.304240 | 160 | 3.0-4.2/2.2 | 22/25.4/30/55 | 40 | TOP BEVEL CONICAL TEETH |
SS160.334540 | 160 | 3.3-4.5/2.5 | 22/25.4/30/55 | 40 | TOP BEVEL CONICAL TEETH |
SS160.385040 | 160 | 3.8-5.0/3 | 22/25.4/30/55 | 40 | TOP BEVEL CONICAL TEETH |
SS180.304240 | 180 | 3.0-4.2/2.2 | 25.4/30/35/45 | 40 | TOP BEVEL CONICAL TEETH |
SS180.334540 | 180 | 3.3-4.5/2.5 | 25.4/30/35/45 | 40 | TOP BEVEL CONICAL TEETH |
SS180.385040 | 180 | 3.8-5.0/3.0 | 25.4/30/35/45 | 40 | TOP BEVEL CONICAL TEETH |
SS200.435340 | 200 | 4.3-5.3/3.0 | 30/45/65/75 | 40 | TOP BEVEL CONICAL TEETH |
SS200.465840 | 200 | 4.3-5.3/3.0 | 30/45/65/75 | 40 | TOP BEVEL CONICAL TEETH |
Packing details:
1. The inner package: 1 PCS per plastic bag
2. The outside package: 1PCS per color box
3. The third package:15 pieces per carton
4. Carton size: 40X40X25 CM
5. Net weight: 1KG/pc
Shipping details:
| Shipping method | Quantity | Means of transpor | Shipping time |
| Express | Suit for small order and medium order | DHL FEDEX Postal service | 3-5days 4-6days 10days |
| Air Transportation | Suit for urgent and medium order | By plane | 3-5days |
| Sea Transportation | Suit for big order | By ship | Southeast Asia 15days South Asia 15days Middle East 15-20days Europ 25-30days |
We will be your long term and reliable China supplier from now on. Please contact with us and tell us the items you need,thanks.
